Galden HT-135

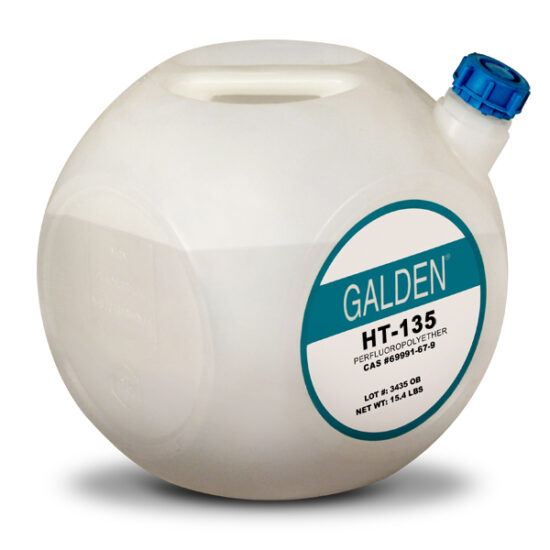

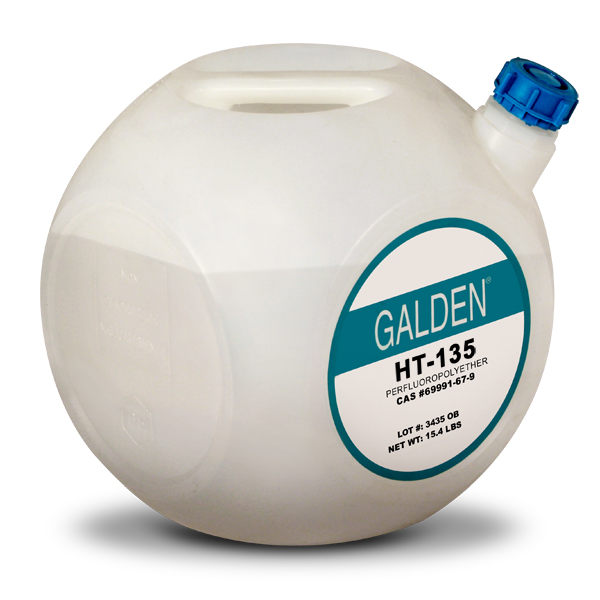

Galden HT-135 PFPE Heat Transfer Fluid 7 kg / 1 Gal Bottle

$ 1,360.00

AVAILABILITY: Out of Stock

Out of stock

SKU: GALDENHT135-7KG Category: Tag:
Solvay

Description

Galden HT-135 PFPE Heat Transfer Fluid 7 kg / 1 Gal Bottle

Galden HT-135 PFPE heat transfer fluid is a line of dielectric fluids with boiling points ranging from 55° C to 270° C. The excellent dielectric properties of these perfluorinated polyethers (PFPE) and their high chemical stability combined with the capacity to operate at very low as well as elevated temperatures, make them the best heat transfer fluids for the aggressive conditions found in semiconductor, electronic, and solar industries.

Galden HT-135 PFPE heat transfer fluid Operating temperature range

Galden ht pfpe-operating temperature range

Grade HT55 HT70 HT80 HT110 HT135 HT170 HT200 HT230 HT270
Vapor Pressure (Torr) 225 141 105 17 5.8 0.8 0.2 0.025 0.01
Pour Point
(° C)		 -110 -115 <-110 -110 -110 -97 -85 -77 -66
Boiling Point
(° C)		 55 70 80 110 135 170 200 230 270
Specific Heat (J/g) 0.232 0.232 0.232 0.232 0.232 0.232 0.232 0.232 0.232
Surface Tension 16 14 16 16 17 18 19 19 20
Molecular Weight 340 410 430 580 610 760 870 1020 1550
Heat of Vaporization 22 17 17 17 16 16 15 15 15
Kinematic Viscosity (cSt) 0.45 .050 0.57 0.77 1.00 1.80 2.40 4.40 11.70
Thermal Conductivity 0.065 0.065 0.065 0.065 0.065 0.065 0.065 0.065 0.065
Relative Density 1.65 1.68 1.69 1.71 1.72 1.77 1.79 1.82 1.85
Volume Resistivity 1 x 1012 1 x 1015 1.5 x 1015 1.5 x 1015 1.5 x 1015 1.5 x 1015 6 x 1015 6 x 1015 6 x 1015
Solubility of Water
(ppm by wt)		 14 14 14 14 14 14 14 14 14
Dielectric Strength 40 40 40 40 40 40 40 40 40
Dielectric Constant 1.86 1.88 1.89 1.92 1.92 1.94 1.94 1.94 1.94
Solubility of Air
(cm3 gas/100 cm3 liquid)		 26 26 26 26 26 26 26 26 26
Operating Range
(° C)		 -90 to 45 -75 to 60 -70 to 70 -60 to 100 -50 to 125 -30 to 160 -20 to 190 0 to 220 25 to 260

Application of Galden HT-135

  • Antifreeze liquid
  • Lubricant

Material Safety Data Sheet: Galden HT-135 PFPE

Galden PFPE Heat Transfer Fluids >>

Additional information

Weight 18 lbs
Dimensions 16 × 16 × 16 in

Brand

Solvay
